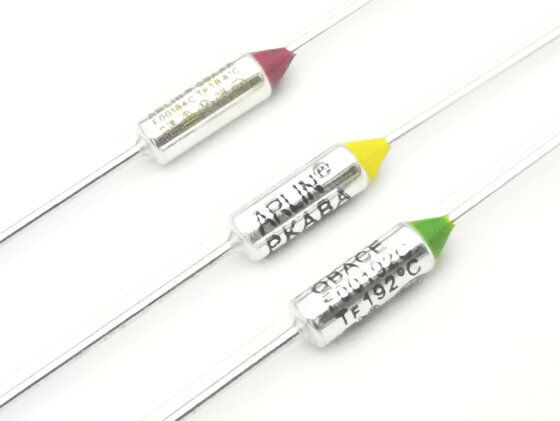

16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection

16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection

Products - ARF Temperature Fuse
  • Material
    Silver, Copper, Ceramic, Stainless Steel, And Epoxy Resin
  • Rated Voltage
    125VAC/250VAC
  • Rated Current
    10A/16A/17A
  • Rated Temperature
    240℃
  • Fusing-Off Tempe
    235~239℃
  • Holding Temperature
    200℃
  • Maximum Temperature
    450℃
  • Maximum Resistance
    1mΩ
  • Response Time
    Fast Blow
  • Lead Length
    Long 35mm, Short 25mm
  • MOQ
    2000pcs
  • MPQ
    500pcs
  • Application
    Electric Appliance
  • Place of Origin
    Shenzhen,China
  • Brand Name
    ARLIN
  • Certification
    UL&CUL,VDE,TUV,CCC,PSE,KC,CB
  • Model Number
    F00240C

16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection

  • 16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection
Get Price Chat Now

To meet customers' demands for higher current, Aial has developed the 16A series. High quality materials and exquisite processing techniques ensure the high current load capacity and instantaneous overload capacity of the 16A series.
Size:

16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection 0

编号

①

②

 ③ ④

部件及规格

独立线脚

▢Ø1.0(铜镀银)

本体

Ø4.0(铜镀银)

外壳线脚

Ø1.0(铜镀银)

 高温密封胶


Printing and coding principles for thermal fuse products:

16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection 1


Specification Table:

Characteristic Sheet of ARLIN® 16A/250V

额定动作温度

Tf

实际动作温度

Ta

保持温度

Th

极限温度

Tm

电流电压

I/U

安规认证

CCC

VDE

TUV

PSE

KC

72°C

67℃71℃

57°C

201°C

16A,250V

●

●

●

●

◎

77°C

72℃—76℃

62°C

301°C

16A,250V

●

●

●

●

◎

84°C

79℃—83℃

69°C

301°C

16A,250V

●

●

●

●

●

93°C

88℃—92℃

78°C

301°C

16A,250V

●

●

●

●

●

98°C

92℃—97℃

83°C

301°C

16A,250V

●

●

●

●

●

104°C

98℃—103℃

89°C

226°C

16A,250V

●

●

●

●

●

110°C

105℃—109℃

95°C

301°C

16A,250V

●

●

●

●

●

117°C

111℃—116℃

102°C

401°C

16A,250V

●

◎

●

●

●

121°C

116℃—120℃

106°C

401°C

16A,250V

●

●

●

●

●

128°C

123℃—127℃

113°C

401°C

16A,250V

●

●

●

●

●

134°C

128℃—133℃

119°C

401°C

16A,250V

●

◎

●

●

●

144°C

139℃—143℃

129°C

401°C

16A,250V

●

●

●

●

●

152°C

146℃—151℃

137°C

401°C

16A,250V

●

◎

●

●

●

157°C

151℃—156℃

142°C

401°C

16A,250V

●

◎

●

●

●

167°C

161℃—166℃

152°C

401°C

16A,250V

●

●

●

●

●

172°C

167℃—171℃

157°C

401°C

16A,250V

●

●

●

●

●

184°C

179℃—183℃

169°C

401°C

16A,250V

●

●

●

●

●

192°C

187℃—191℃

177°C

401°C

16A,250V

●

●

●

●

●

216°C

211℃—215℃

200°C

451°C

16A,250V

●

●

●

●

●

229°C

224℃—228℃

200°C

451°C

16A,250V

●

●

●

●

●

240°C

235℃—239℃

210°C

451°C

16A,250V

●

●

●

●

●

257°C

252℃—256℃

220°C

471°C

16A,250V

●

◎

●

●

●

●Approved 已认证  ◎On going 申请中

注:UL&CUL 98—192℃  16A/250VAC
