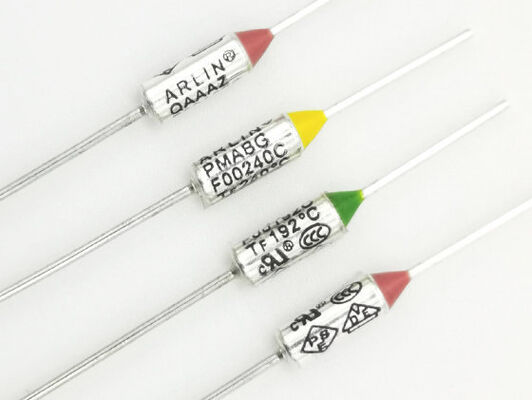

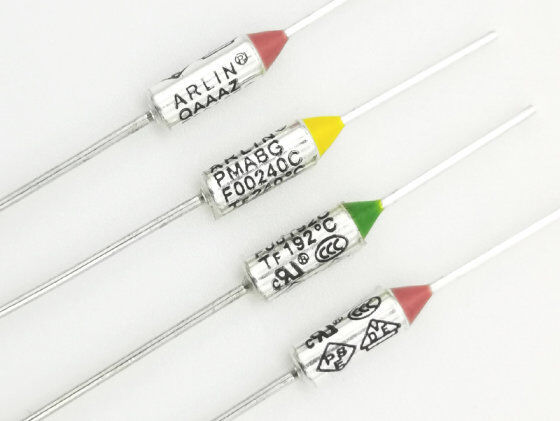

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection

Products - ARF Temperature Fuse
  • Operatingtemperaturerange
    -40°C To +150°C
  • Model
    ARF
  • Ratedcurrent
    Varies (e.g., 10A, 15A)
  • Compliance
    UL, CSA, VDE Certified
  • Ratedtemperature
    Varies (e.g., 72°C, 90°C, 110°C)
  • Breakingcapacity
    10A At 250V AC
  • Voltagerating
    Typically 250V AC
  • Dimensions
    Varies By Model (e.g., Length 20mm, Diameter 6mm)
  • Responsetime
    Fast Acting
  • Place of Origin
    china

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection

  • ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection
Get Price Chat Now

The F00 series products are thermal fuses that use H90 copper as the shell and high-sensitivity thermosensitive particles (organic chemicals) as the temperature sensing element. Using high-quality silver as the contact material, it has extremely low internal impedance and good current resistance.

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection 0


Size:

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection 1


Printing and coding principles for thermal fuse products:

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection 2


Specification Table:

Characteristic Sheet of ARLIN® F00 Series

额定动作温度

Tf

实际动作温度

Ta

保持温度

Th

极限温度

Tm

额定电流

I/U

安规认证

 环保
UL VDE TUV CCC PSE KC CB REACH ROHS
72°C

67℃～71℃

 57°C 201°C

10A/250V

15A/120V

16A/250V

 ● ● ● ● ● ● ● √ √
77°C 72℃～76℃ 62°C 301°C ● ● ● ● ● ● ● √ √
84°C 79℃～83℃ 69°C 301°C ● ● ● ● ● ● ● √ √
93°C 88℃～92℃ 78°C 301°C ● ● ● ● ● ● ● √ √
98°C 93℃～97℃ 83°C 301°C ● ● ● ● ● ● ● √ √
104°C 99℃～103℃ 89°C 226°C ● ● ● ● ● ● ● √ √
110°C 105℃～109℃ 95°C 301°C ● ● ● ● ● ● ● √ √
117°C 112℃～116℃ 102°C 401°C ● ◎ ● ● ● ● ● √ √
121°C 116℃～120℃ 106°C 401°C ● ● ● ● ● ● ● √ √
128°C 123℃～127℃ 113°C 401°C ● ● ● ● ● ● ● √ √
134°C 129℃～134℃ 119°C 401°C ● ◎ ● ● ● ● ● √ √
144°C 139℃～143℃ 129°C 401°C ● ● ● ● ● ● ● √ √
152°C 147℃～151℃ 137°C 401°C ● ◎ ● ● ● ● ● √ √
157°C 152℃～156℃ 142°C 401°C ● ◎ ● ● ● ● ● √ √
167°C 162℃～166℃ 152°C 401°C ● ● ● ● ● ● ● √ √
172°C 167℃～171℃ 157°C 401°C ● ● ● ● ● ● ● √ √
184°C 179℃～183℃ 169°C 401°C ● ● ● ● ● ● ● √ √
192°C 187℃～191℃ 177°C 401°C ● ● ● ● ● ● ● √ √
216°C 211℃～215℃ 200°C 451°C ● ● ● ● ● ● ● √ √
229°C 224℃～228℃ 200°C 451°C ● ● ● ● ● ● ● √ √
240°C

235℃～239℃

210°C

 451°C ● ● ● ● ● ● ● √ √
257°C 252℃～256℃

210°C

471°C

●

 ◎ ● ● ● ● ● √ √
●Approved已认证  ◎On going申请中  √ Compliance符合
