ART Series Thermostat Temperature Control Device With Glue Dispensers Boilers Air Conditioners
-
Temperature50～250℃
-
Power16A 250VAC
-
ControltypeTouchscreen
-
DisplaytypeLCD
-
Temperaturerange-10°C To 50°C
-
ModelART-1000
-
InstallationWall-mounted
-
TypeDigital Thermostat
-
ProgrammableYes
-
OutputtypeRelay Output
-
PowersupplyAC 110-240V
-
Place of Originchina
-
Model NumberKSD301 series
ART Series Thermostat Temperature Control Device With Glue Dispensers Boilers Air Conditioners

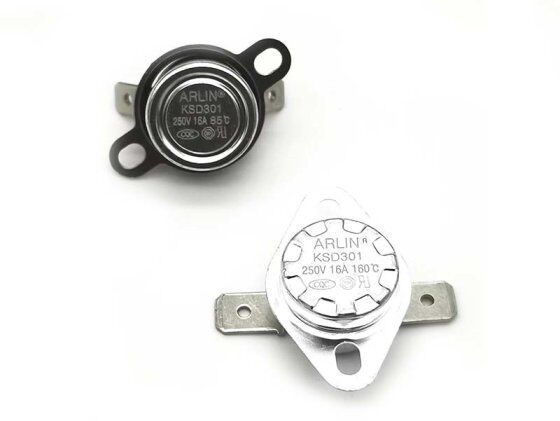

KSD301 thermostat:
Structural features:
● Miniature design for easy installation
● Able to respond quickly to temperature variations, decisively, reliably, and without arcing.
● No current thermal effect design, accurate temperature, long lifespan, low internal resistance
Adopting imported environmentally friendly materials (tested by RoHS and REACH) that meet export requirements.
Scope of application:
This product is used for electric heating appliances such as water dispensers, water heaters, sandwich toasters, dishwashers, dryers, disinfection cabinets, microwaves, electric coffee makers, electric boilers, refrigerators, air conditioners, glue dispensers, boilers, office equipment, household appliances, and instrument equipment.
When using contact temperature sensing installation, the product should be tightly attached to the installation surface of the controlled instrument.
During installation, do not forcefully collapse or alter the casing to avoid affecting its performance.
Note: Customers can choose the housing installation ring and terminal according to different needs.
Technical Specifications:
● Contact form: normally open, normally closed
● Working voltage and current: 16A/250VAC
● Operating temperature: 50-250 ℃ (separated by 5 ℃ as one level)
Standard tolerance: ± 5 ℃ (customizable ± 2 ℃)
● Action lifespan: ≥ 100000 times
Temperature range:
| KSD系列 | |||||
|
型号 |
动作温度 |
复位温度 |
型号 |
动作温度 |
复位温度 |
|
KSD301-B(K)T(D)-50℃ |
50±5.0 |
30±5 |
KSD301-B(K)T(D)-155℃ |
155±5.0 |
130±5 |
|
KSD301-B(K)T(D)-55℃ |
55±5.0 |
35±5 |
KSD301-B(K)T(D)-160℃ |
160±5.0 |
135±5 |
|
KSD301-B(K)T(D)-60℃ |
60±5.0 |
40±5 |
KSD301-B(K)T(D)-165℃ |
165±5.0 |
140±5 |
|
KSD301-B(K)T(D)-65℃ |
65±5.0 |
45±5 |
KSD301-B(K)T(D)-170℃ |
170±5.0 |
145±5 |
|
KSD301-B(K)T(D)-70℃ |
70±5.0 |
50±5 |
KSD301-B(K)T(D)-175℃ |
175±5.0 |
150±5 |
|
KSD301-B(K)T(D)-75℃ |
75±5.0 |
55±5 |
KSD301-B(K)T(D)-180℃ |
180±5.0 |
155±5 |
|
KSD301-B(K)T(D)-80℃ |
80±5.0 |
60±5 |
KSD301-B(K)T(D)-185℃ |
185±5.0 |
160±5 |
|
KSD301-B(K)T(D)-85℃ |
85±5.0 |
65±5 |
KSD301-B(K)T(D)-190℃ |
190±5.0 |
165±5 |
|
KSD301-B(K)T(D)-90℃ |
90±5.0 |
70±5 |
KSD301-B(K)T(D)-195℃ |
195±5.0 |
170±5 |
|
KSD301-B(K)T(D)-95℃ |
95±5.0 |
75±5 |
KSD301-B(K)T(D)-200℃ |
200±5.0 |
175±5 |
|
KSD301-B(K)T(D)-100℃ |
100±5.0 |
80±5 |
KSD301-B(K)T(D)-205℃ |
205±5.0 |
175±5 |
|
KSD301-B(K)T(D)-105℃ |
105±5.0 |
85±5 |
KSD301-B(K)T(D)-210℃ |
210±5.0 |
180±5 |
|
KSD301-B(K)T(D)-110℃ |
110±5.0 |
90±5 |
KSD301-B(K)T(D)-215℃ |
215±5.0 |
185±5 |
|
KSD301-B(K)T(D)-115℃ |
115±5.0 |
95±5 |
KSD301-B(K)T(D)-220℃ |
220±5.0 |
190±5 |
|
KSD301-B(K)T(D)-120℃ |
120±5.0 |
100±5 |
KSD301-B(K)T(D)-225℃ |
225±5.0 |
195±5 |
|
KSD301-B(K)T(D)-125℃ |
125±5.0 |
105±5 |
KSD301-B(K)T(D)-230℃ |
230±5.0 |
200±5 |
|
KSD301-B(K)T(D)-130℃ |
130±5.0 |
110±5 |
KSD301-B(K)T(D)-235℃ |
235±5.0 |
205±5 |
|
KSD301-B(K)T(D)-135℃ |
135±5.0 |
115±5 |
KSD301-B(K)T(D)-240℃ |
240±5.0 |
210±5 |
|
KSD301-B(K)T(D)-140℃ |
140±5.0 |
120±5 |
KSD301-B(K)T(D)-245℃ |
245±5.0 |
215±5 |
|
KSD301-B(K)T(D)-145℃ |
145±5.0 |
125±5 |
KSD301-B(K)T(D)-250℃ |
250±5.0 |
220±5 |
|
KSD301-B(K)T(D)-150℃ |
150±5.0 |
130±5 |
|
|
|
Product Code:
Safety certification:
Our products are sold all over the world, you can rest assured.
